Description

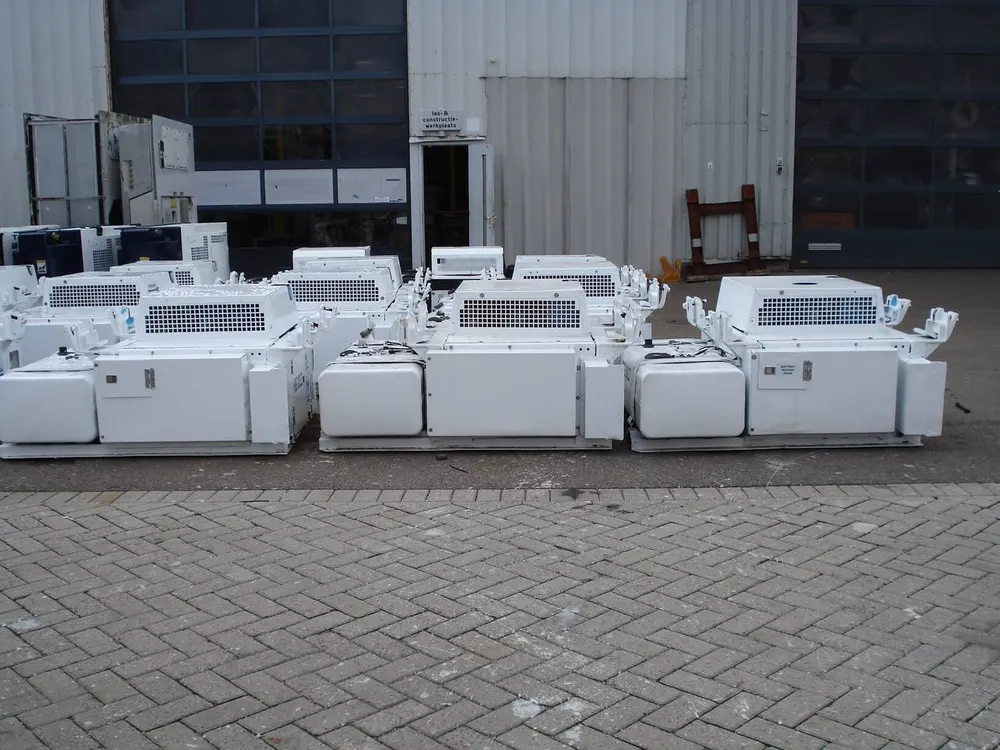

The Carrier PowerLINE 69UG15-068S-13 is the Series 13 undermount generator set — the EPA Tier 4 member of the PowerLINE family, built with Carrier’s ecoFORWARD technologies to meet both EPA Tier 4 and CARB emissions requirements. Listed at $9,300.
69UG15-068S-13 Specifications
- Model: PowerLINE 69UG15-068S-13, Series 13
- Output: 15 kW / 18.75 kVA, 460 V AC, 3-phase, 60 Hz
- Engine: industry-standard 2.2 litre direct injection diesel
- Generator: ultra-high-efficiency permanent magnet type
- Emissions: US EPA Tier 4; CARB compliance available via Carrier’s optional Engine Emissions System (EES)
- Mounting: undermount, bolts to a standard container chassis
- Condition: new and used units available
- Price: $9,300
What the Permanent Magnet Generator Buys
A conventional alternator has to spend engine power exciting its own field before it produces a watt for the load. A permanent magnet generator does not — the field is already there in the magnets. That reduces the parasitic load on the engine, which means less fuel burned for the same 15 kW at the container. Over a genset’s service life that difference is the largest single line in its running cost.
Tier 4 Compliance Without Complication
Carrier’s pitch on the Series 13 was that Tier 4 compliance is surprisingly simple, and in service that has held up. The emissions strategy is built into the engine and its controls rather than bolted on as aftertreatment that demands a duty cycle a genset never sees. For an operator, that means no regeneration cycles to manage on a machine that spends its life at part load.
Applications
Reefer container drayage and intermodal haulage on a fixed chassis pool, port and terminal operations, and fleets replacing older Tier 4 interim units. Compare with the Series 24 if you need the 2023 CARB certification, or the Series 55 for Stage V export markets.
Freight
Ships on a flatbed with forklift loading; freight quoted to your delivery ZIP code. Contact us for engine hours and availability.
