Description

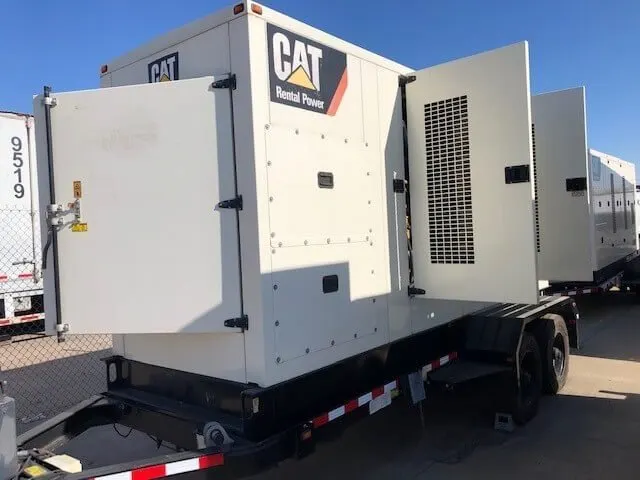

A Caterpillar towable mobile generator set is a complete power plant on a trailer chassis. It hitches to a standard truck, tows to site, and is set up and running without a crane, a foundation or a permanent connection. For contractors, event operators, film production, disaster response and any operation that moves between locations, that mobility is worth more than a fixed set’s slightly better economics. Listed at $250,000; package pricing available on multiple units.
What a Mobile Generator Set Includes
- Configuration: trailer-mounted, towable behind a standard truck and hitch
- Engine and alternator: Cat diesel engine with matched generator end, factory packaged
- Enclosure: weatherproof, sound-attenuated housing
- Fuel: integral base tank sized for extended run time
- Control: Cat control panel with output metering and protection
- Distribution: output connections and breakers configured to the application
- Rating: Cat power systems span 5 to 16,000 kW — the specific rating on this unit is confirmed on enquiry
- Price: $250,000
Choosing a Towable Set
Two constraints usually decide it. The first is the tow vehicle: a mobile generator is only mobile if you have something rated to pull it and somewhere legal to park it, and the gross weight climbs quickly with output and fuel capacity. The second is the load — size on the largest motor starting load, not on the sum of running loads, because motor inrush is what makes an undersized set stall and trip.
Applications
Construction and civil job sites with no grid connection, temporary power during a facility shutdown or upgrade, outdoor events, film and broadcast production, mining and remote industrial operations, and emergency response after storm damage.
Package Pricing and Availability
These units are held for immediate shipment and package pricing is available where more than one is required. Because rating, enclosure, fuel capacity and output configuration all vary by build, tell us the load, the run time you need and the site and we will confirm the exact specification and a delivered price. For fixed prime power on a gas supply, see the Caterpillar G3516 gas generator set.
Freight
Towable sets can be collected and driven away by a suitably rated vehicle, or delivered on a lowboy. Freight is quoted to your delivery ZIP code.
