Carrier PowerLINE 69RG15 Clip-On Genset

Description

The Carrier PowerLINE 69RG15 is the clip-on generator set in Carrier Transicold’s PowerLINE range. Where the 69UG15 undermount bolts to a chassis, the RG15 pin-mounts to the front of a refrigerated container and can be attached or removed in minutes — which is what makes one genset able to serve a yard full of containers instead of a single trailer. Listed at $7,500.

Carrier 69RG15 Specifications

• Type: clip-on container generator set
• Output: 15 kW / 18.75 kVA, 460 V AC, 3-phase, 60 Hz

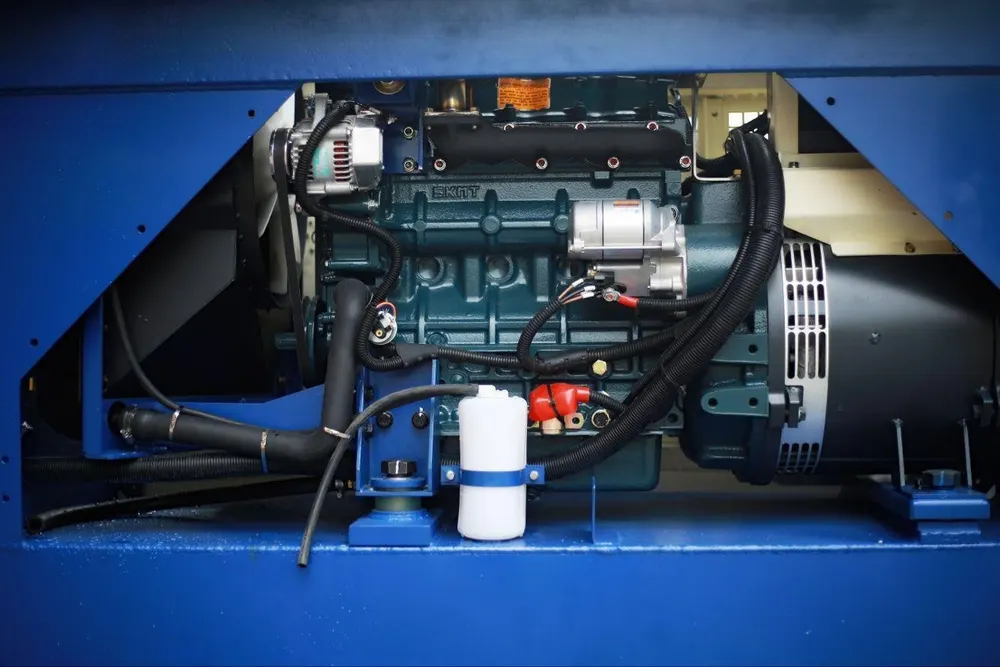

• Engine: 2.2 litre direct injection diesel
• Generator: ultra-high-efficiency permanent magnet type

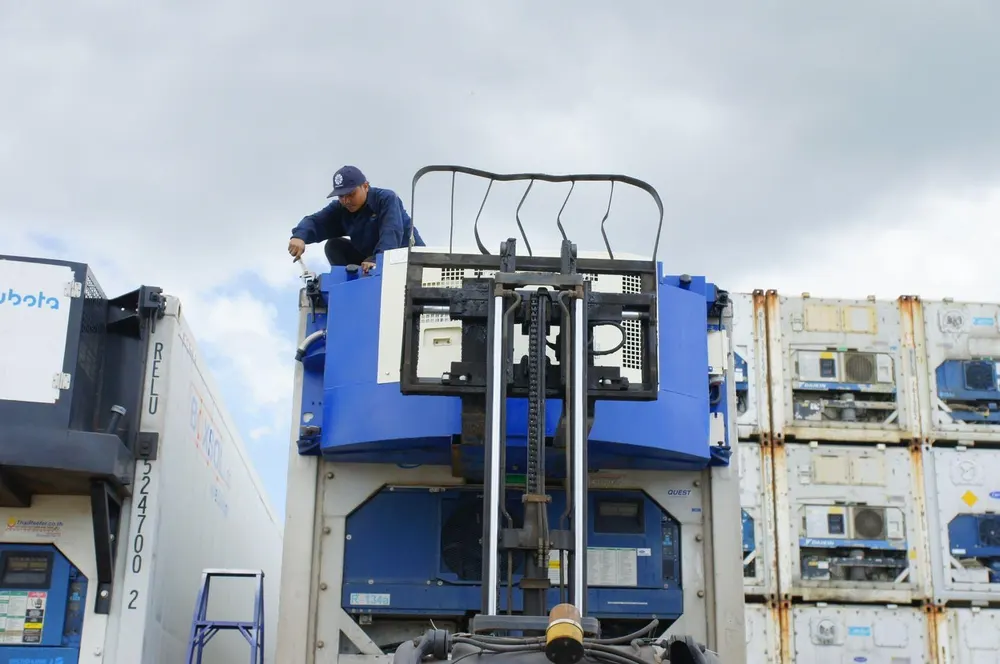

• Mounting: RG15 pin-mount system, attaches or detaches in minutes
• Emissions series available: 69RG15-130W-05 (EPA Tier 4 interim), 69RG15-120W-13 (EPA Tier 4), 69RG15-120W-24 (2023 CARB), 69RG15-120W-55 (EU Stage V)
• Technology: Carrier ecoFORWARD
• Condition: new and used units available
• Price: $7,500

Mounting Flexibility Is the Whole Argument

Carrier’s design brief for PowerLINE was that the operator should not be locked into a mounting decision at purchase. Clip (RG15) and undermount (UG15) share the same engine, generator and controls; only the frame differs. For a drayage operator whose refrigerated volume moves between containers day to day, a small pool of clip-on sets covers a much larger pool of boxes than dedicating a genset to every chassis ever could.

Choosing the Emissions Series

Every PowerLINE model number ends in a series code, and it is the only thing that determines where the unit is legal to operate. Series 5 is EPA Tier 4 interim and built on an export engine in the 19-37 kW class. Series 13 is full EPA Tier 4. Series 24 meets the 2023 CARB requirement for 8-19 kW engines using an ECU, common-rail injection and precise fuel metering. Series 55 is EU Stage V. Tell us where the set will work and we will specify it correctly.

Applications

Reefer container drayage, port and terminal haulage, intermodal moves, and temporary cold storage. For chassis-dedicated fleets see the 69UG15 undermount.

Freight

Ships on a flatbed with forklift loading; freight is quoted to your delivery ZIP code.
