Description

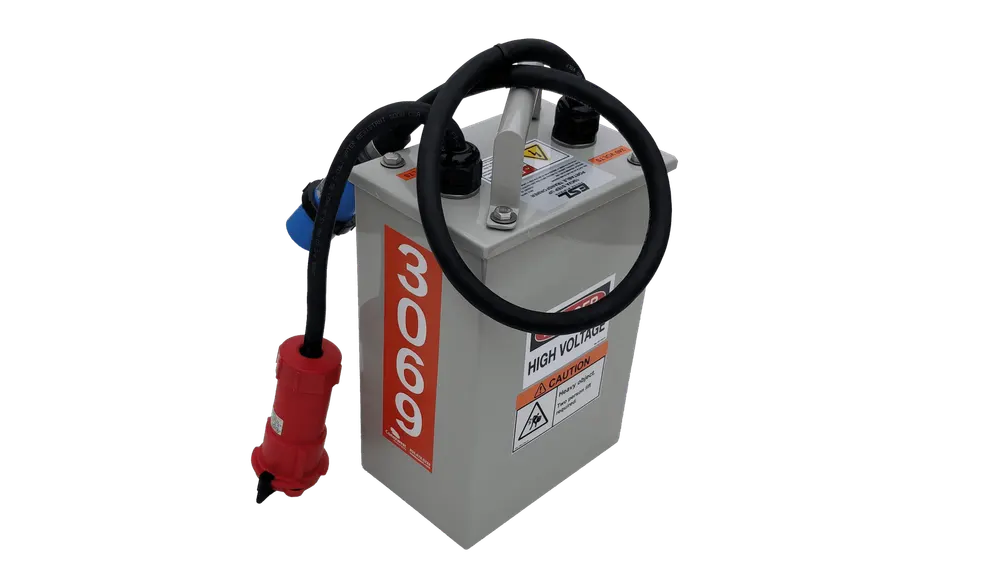

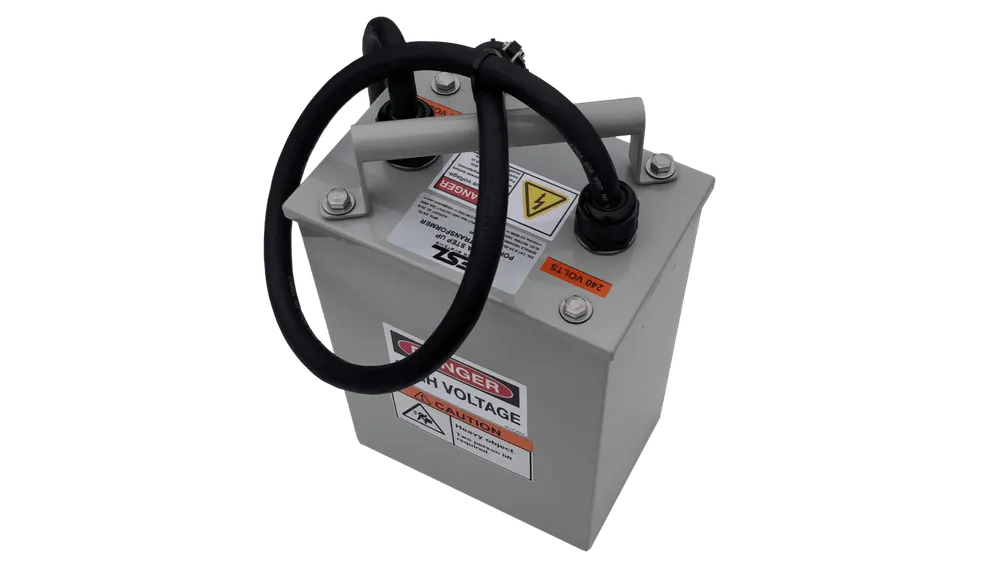

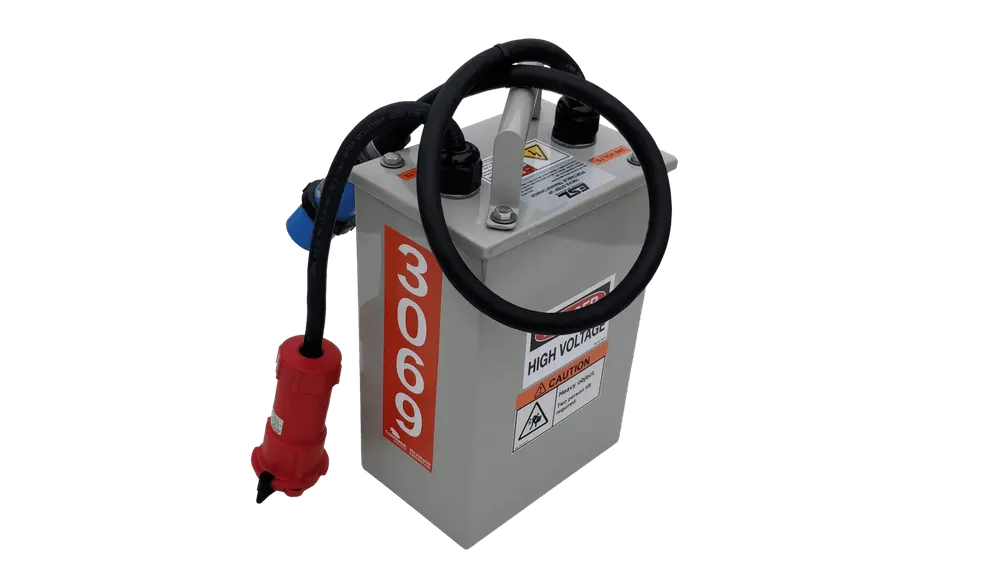

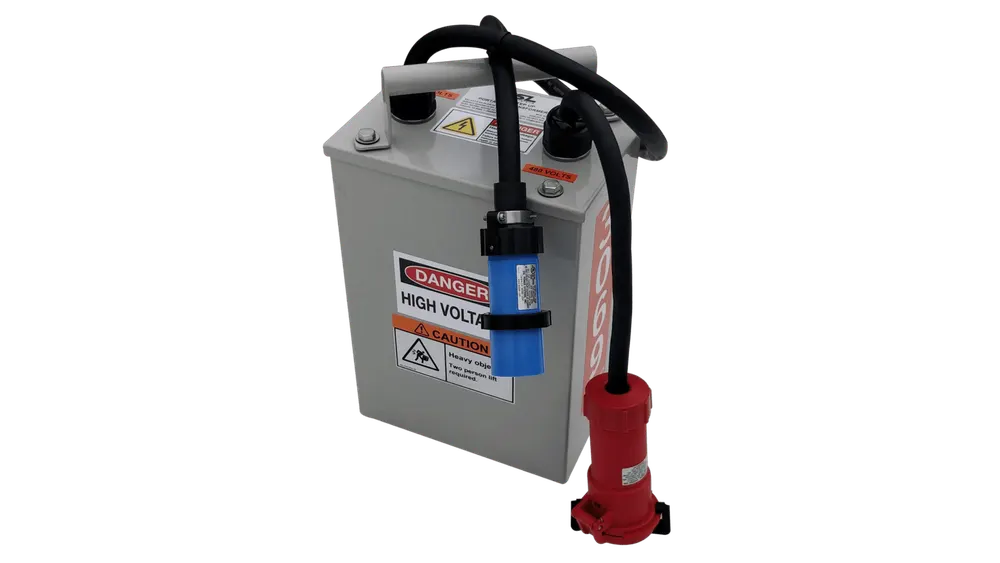

This 230 V to 460 V step-up transformer solves the most common problem in refrigerated container logistics: the container expects 460 volts three phase and the site has 230. It is a modular, plate-mounted dual-voltage unit supplied ready to connect, with the cable and receptacle already fitted. Listed at $3,100.

230V-460V Transformer Specifications

Function: step up, 230 V to 460 V
Construction: modular, mounted to a plate and bracket
Cable: 8/4 SO cable with black rubber insulation rated 60°C (140°F)
Receptacle: high voltage receptacle conforming to CEE-17; other receptacles available to special order
Circuit breaker: optional (CB2)
Weight: 63.5 kg (140 lb)
Field-installed kit part numbers: 76-00670-00 with CB2; 76-00670-02 without CB2
Price: $3,100

Why a Reefer Needs 460 Volts

Refrigerated ISO containers are built to a single global electrical specification — 460 volts, three phase, 60 Hz — so that a box loaded in one country can be plugged in at a terminal in another. That standardisation is what makes the cold chain work, and it is also why a container arriving at a site with a 230 volt supply simply will not run. A step-up transformer is the bridge, and it is far cheaper than upgrading a site’s electrical service or hiring a clip-on genset for a container that is going to sit for weeks.

The CEE-17 Receptacle

CEE-17 (IEC 60309) is the industrial connector standard — the colour-coded, keyed pin-and-sleeve plugs and sockets used across industrial and marine power. The keying and colour coding are safety features, not decoration: they make it physically impossible to plug a 230 volt appliance into a 460 volt outlet. If your site uses a different connector, other receptacles can be furnished by special order.

Modular and Portable

At 140 lb the unit can be moved between locations by two people or a pallet truck, and the plate-and-bracket mounting means it can be fixed to a wall, a frame or a skid depending on the site. That portability is the point: a depot that occasionally receives a mismatched container needs a transformer it can carry to the container, not a permanent installation.

For a 220 V supply see the 220 V to 440 V kit. For stepping an industrial 480 V service down to usable site power, see the 45 kVA and 30 kVA transformers.

Freight

Ships palletised; freight quoted to your delivery ZIP code. Tell us your supply voltage, phase and connected load and we will confirm the right kit and whether you need the circuit breaker option.
